CM Angle Sweeper CSA Series – Multipurpose Brush

Features of the CM Angle Sweeper CSA Series – Multipurpose Brush

Angle sweeper without collection bucket, manufactured with working widths from 1 to 3 m. Applicable to the front of any operating machine, it is suitable for cleaning roads, construction sites, courtyard areas, or sweeping snow. It is equipped with a mechanical inclination (hydraulic on request) ± 30°.

• Internal brush Ø600/800 mm
  From CSA 105 to CSA 175 the brushes are Ø600; from CSA 200 to 300 the brushes are Ø800 mm. Oversized polypropylene brush wire as standard.

• Construction of special attachments
  Possibility of applying the sweeper to the front of trucks and municipal works vehicles.

• Chain transmission
  From model CSA 105 to CSA 175.

• Direct-drive hydraulic motor
  From model CSA 200 to CSA 300.

Advantages of the CM Angle Sweeper CSA Series

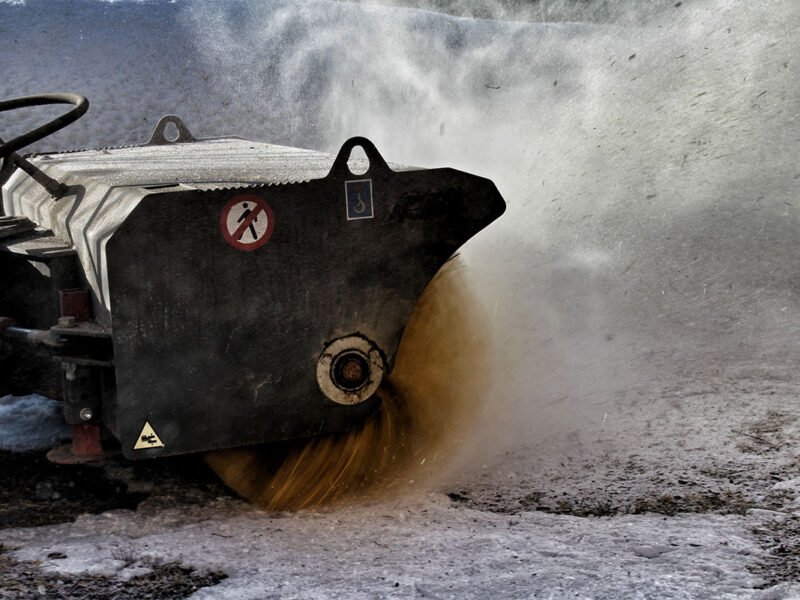

• Excellent solution for snow ploughing
• It is suitable for municipal operating machine
• Special mounting plate for municipal operating machines
• Fast maintenance

Uses of the CM Angle Sweeper CSA Series

• Road works
• Maintenance of the landscape and agricultural areas

Optional Accessories for the CM Angle Sweeper CSA Series

• Watering kit with tank
  Watering kit by pressure with 12 V pump and sprayers, 100 lt tank

• Watering kit
  By pressure for operating machines with own tank

• Mixed steel internal brush
  Main brush in PPL/Steel.

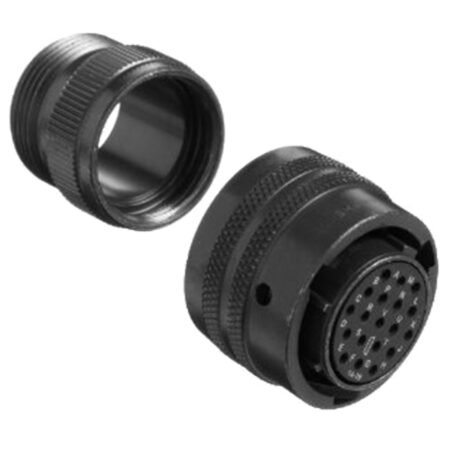

• Connector 8-14 poles 12 V

• Watering kit with 200 lt tank
  Watering kit by pressure with 12 V pump and sprayers, 200 lt tank

• Hydraulic inclination
  RIGHT and LEFT hydraulic angle ±30° with oil-dynamic cylinder, mounted directly on the brush guard/connection head.

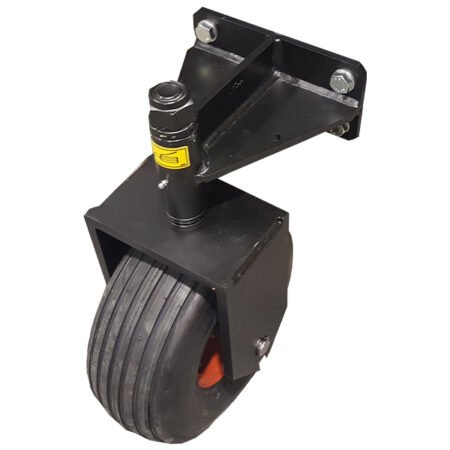

• Turning supporting wheels
  It facilitates operator handling.

Models and Specifications of the CM Angle Sweeper CSA Series
