CM Kommunal Sweeping Bucket – CSK Series

Features of the CM Kommunal Sweeping Bucket – CSK Series

Our CSK sweepers were born for municipal activities. Manoeuvrability, easy handling and excellent all-around visibility are the most important prerequisites for efficient and comfortable work.

Municipalities, construction sites and service providers are required to clean streets, squares and areas all year round. From cleaning light dirt to removing coarse dirt. The roller brushes can be easily replaced so that the sweepers can also be used for winter service or to remove weeds.

It is built with working widths up to 4 m.

• Hydraulic bucket opening
  As standard on all models, the bucket is opened for unloading by means of hydraulic pistons.

• Maximum flexibility
  From a bucket for dirt collection, you can easily switch to free sweeping without changeover times. The sweeper becomes an angle sweeper that turns mechanically or hydraulically as an option.

• Maximum manoeuvrability
  It has 3 or 4 rubber wheels that perfectly follow the machine’s movements for all-round manoeuvrability.

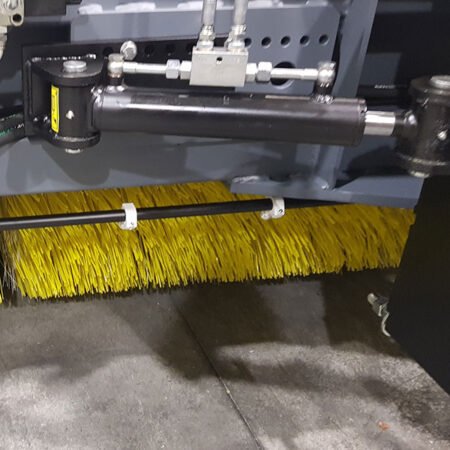

• Brush adjustment
  Depending on the wear of the brush, the central drum can be adjusted so that it is used to the minimum diameter. The numbers on the side indicate the brush Ø.

• Internal brush in PPL oversized as standard

  Depending on the model, with ø 600 or 800 mm

Uses of CM Kommunal Sweeping Bucket – CSK Series

• Quarries and mines
• Road works
• Construction industry
• Maintenance of the landscape and agricultural areas

Advantages of CM Kommunal Sweeping Bucket – CSK Series

• Suitable for municipal vehicles
• Simple manoeuvrability
• Multi-purpose sweeper: from light dust cleaning to snowploughing
• Quick and easy maintenance

Optional Accessories

• PPL side cleaning brush
  Ø600 with independent hydraulic motor

• Mixed steel side cleaning brush
  Ø600 with independent hydraulic motor

• Steel side cleaning brush
  Ø600 with independent hydraulic motor

• Side brush nozzle

• Mixed steel internal brush
  Main brush in PPL/Steel

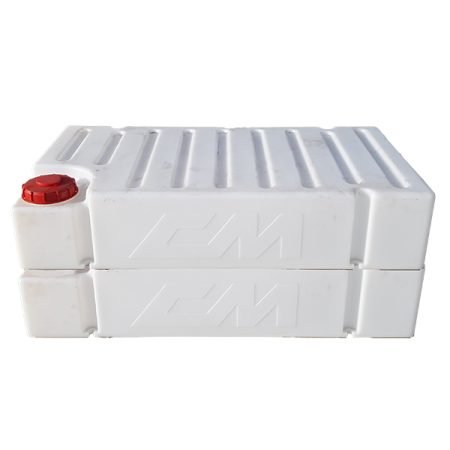

• Watering kit
  By pressure for operating machines with own tank

• Watering kit with 200 lt tank
  Watering kit by pressure with 12 V pump and sprayers, 200 lt tank

• Watering kit with 300 lt tank
  Watering kit by pressure with 12/24 V pump and sprayers, 300 lt tank

• Watering kit with 600 lt tank
  Watering kit by pressure with 12/24 V pump and sprayers, 600 lt tank

• Connector 8-14 poles 12 V

• Hydraulic brush angle kit ±20° with hinge

Models and Specification of Kommunal Sweeping Buckets – CSK Series
