CM Road Planer for Excavators – FSE Series
The road planer for excavators is a powerful attachment designed to efficiently cut and reduce hard materials such as asphalt, concrete, and rock. It prepares surfaces for excavation, creates crossings, and scarifies damaged areas for effective restoration.
Apraksts

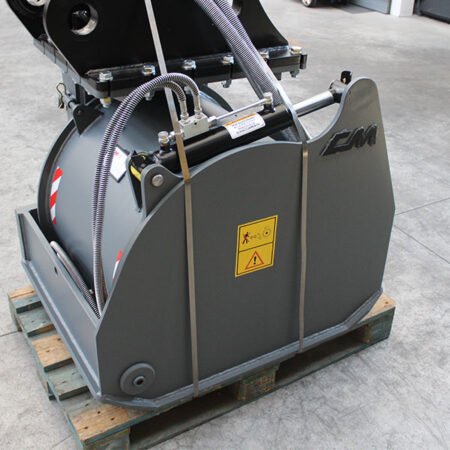

Description and Features of the CM Road Planer (FSE Series)

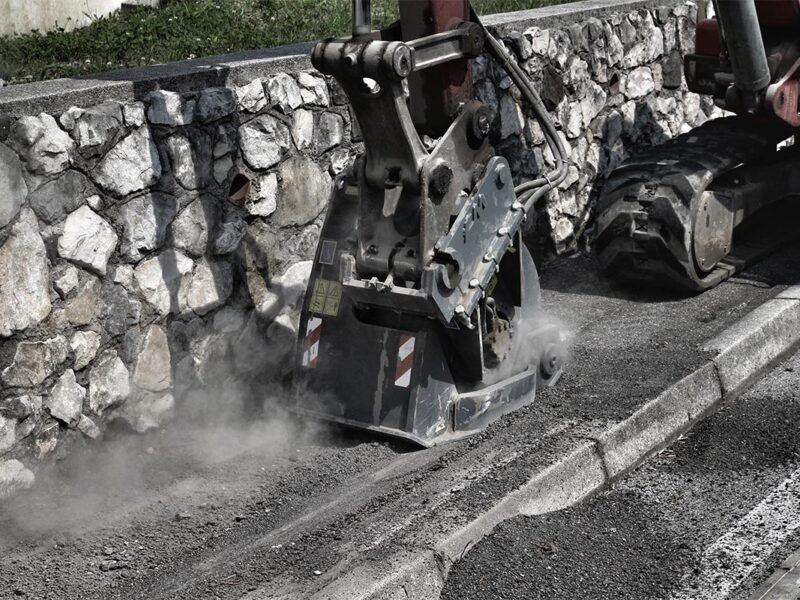

The road planer for excavators. It is designed to cut or reduce hard materials efficiently, to remove the asphalt or concrete layer in preparation for subsequent excavation, to scrape rock, to create crossings or to scarify a damaged surface for subsequent restoration.
Product insights:
- Constant milling. Thanks to the tilting support pivoted on the same axis of rotation as the cutter drum, the road planer maintains a perfect milling surface in all conditions.
- Vertical, horizontal and inclined milling. Thanks to the tilting head.

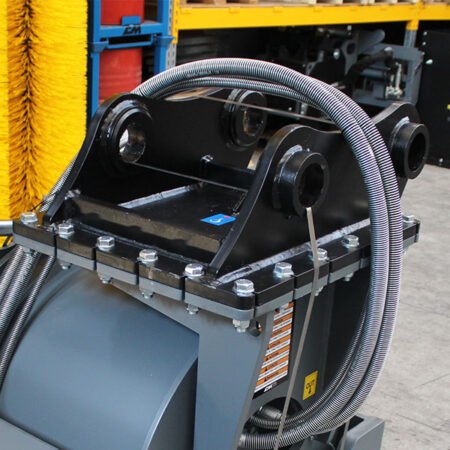

- Customised bracket – according to the operating machine.
Advantages of the CM FSE Road Planers
- Also suitable for small excavators
- Easily transportable for work even in city centres or small villages
- Stable and vibration-free
- Fast maintenance
Uses of the CM FSE Road Planers
- Road works
- Tunnels
- Underground utilities
Optional Accessories for the CM FSE Road Planers
- Tools for concrete
- Milling drum with different widths and sizes
- Hydraulic depth adjustment
- Connection to operating machine. Always customised according to the excavator.
-
- Tools for concrete
-
- Milling drum
-
- Hydraulic depth adjustment
-
- Connection to operating machine
Models and Specifications of the CM FSE Road Planers
| Model | Milling Width (mm) | Oil Flow (l/min) | Weight (kg) |
|---|---|---|---|
| FSE 20.10 | 200 | 20/40 | 180 |
| FSE 30.15 | 300 | 30/60 | 370 |
| FSE 35.15 | 350 | 30/60 | 480 |
| FSE 45.20 | 450 | 80/140 | 720 |
| FSE 60.23 | 600 | 100/160 | 1150 |
