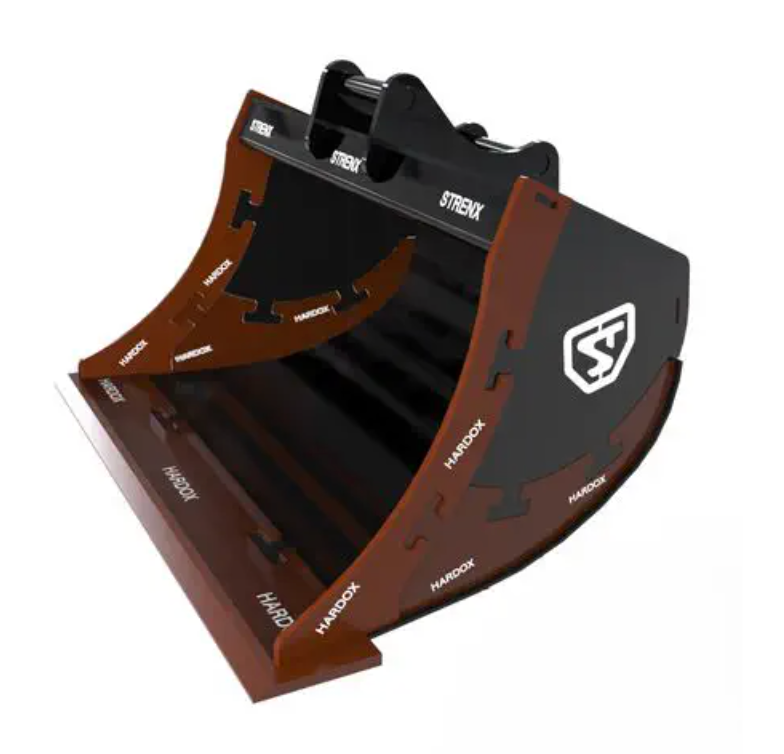

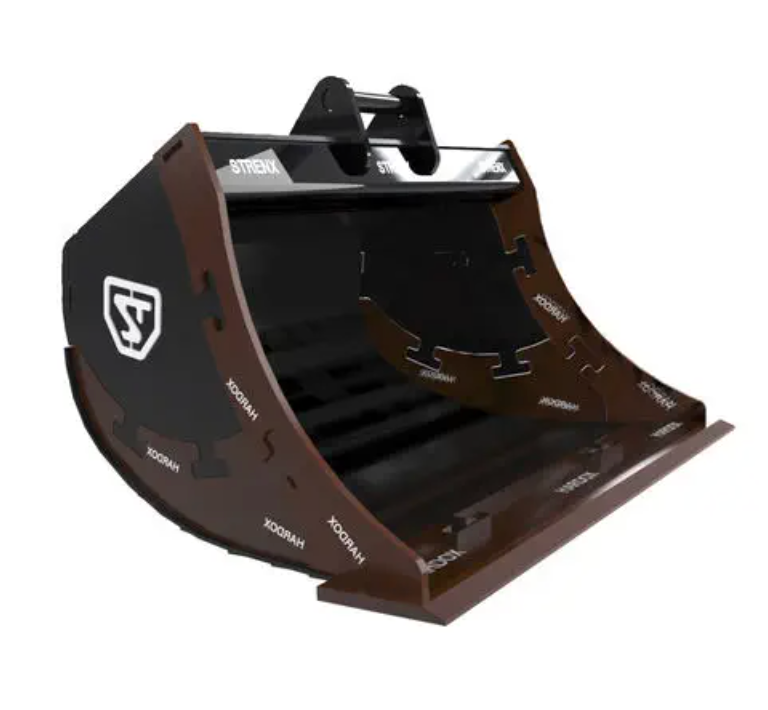

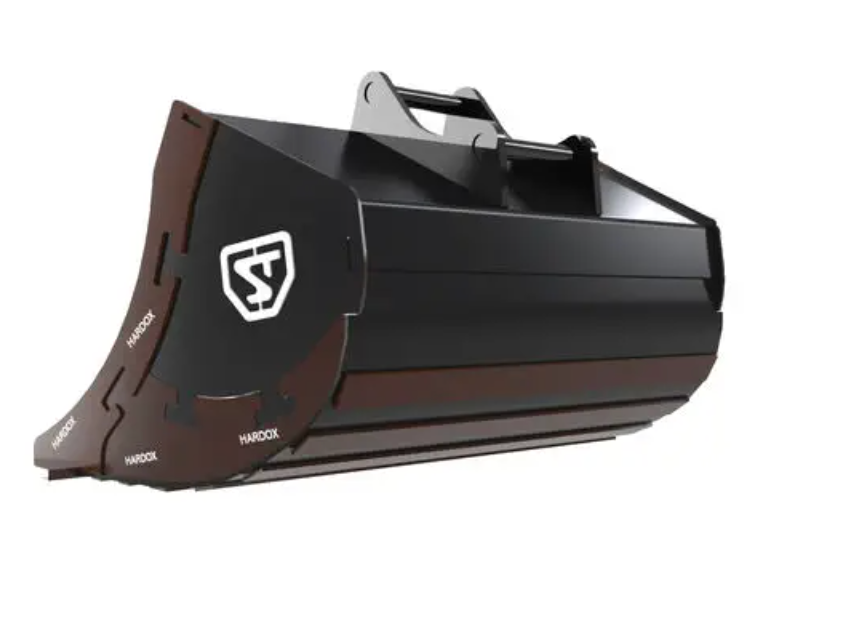

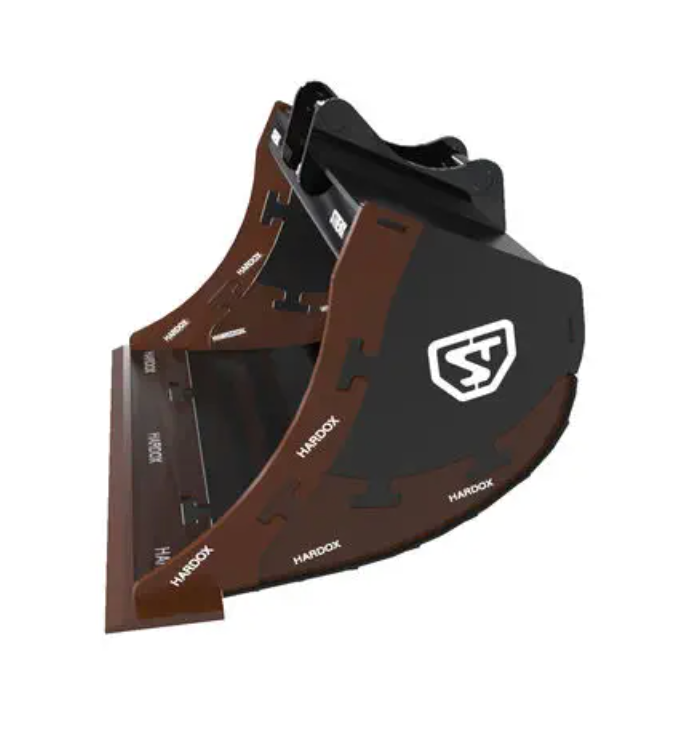

Stec Ditch Cleaning Bucket PB GP
The GP series non-tilting grading bucket is designed for general excavation and handling of medium-abrasive materials like sand, gravel, and limestone, with wear parts made from HB400 steel.
Apraksts
General Purpose or GP series non-tilting grading bucket is designed for normal excavation work under normal conditions. Buckets are suitable for moving medium-abrasive material such as sand, gravel, limestone, etc. Bucket wear parts – front blade, side blades, bucket strips are made of materials with wear resistance of HB400.
Prices: starting from EUR2,280. Please note that prices are shown without tax. Contact us for pricing options.
Stec Ditch Cleaning Bucket PB GP: Technical Specifications
| Specification | Details |
| Type | ditch cleaning |
| Load-bearing | for excavators, for backhoe loaders |
| Cutting edge / teeth hardness | HB500, HB400 |
| Carrier weight | Min.: 12 t (13 us ton)
Max.: 40 t (44 us ton) |
| Bucket width | Min.: 1,500 mm (59 in)
Max.: 2,400 mm (94 in) |
| Capacity | Min.: 0.5 m³ (17.66 ft³)
Max.: 2 m³ (70.63 ft³) |
| Bucket weight | Min.: 1,500 kg (3,306.93 lb)
Max.: 2,400 kg (5,291.09 lb) |
| Bucket depth | Min.: 1,150 mm (45 in)
Max.: 1,710 mm (67 in) |
| Bucket height | Min.: 740 mm (29 in)
Max.: 1,125 mm (44 in) |
