CM Sweeping Bucket CBS PROFI Series

CM Sweeping Bucket CBS PROFI Series

Available in five models with working widths ranging from 2000 mm to 3000 mm, designed for high-power operating machines. Equipped with a larger bucket, the entire structure is reinforced to ensure greater efficiency and performance.

CM Sweeping Bucket CBS PROFI Series Insights

1. Brushes Ø800 mm – Higher brush peripheral speed.
2. Increased bucket capacity – Capacities from 620 to 1100 litres.
3. Stronger structure – Suitable for working in harsh environments and on heavy operating machines.
4. Drive shaft – High-power direct-drive motor. Increased power on the brush, ideal for collecting large material masses.
5. It sweeps in both directions – The CBS PROFI series cleans and collects both forwards and backwards.
6. Increased internal brush as standard. PPL brushes with reinforced brush wire

CM Sweeping Bucket CBS PROFI Series: Advantages

• Sweeping bucket designed for wheel loaders and for heavy-duty operating machines
• High cleaning power
• High collection capacity
• Quick and easy maintenance

CM Sweeping Bucket CBS PROFI Series: Applications

• Quarries and mines
• Road works
• Tunnels

Optional Accessories

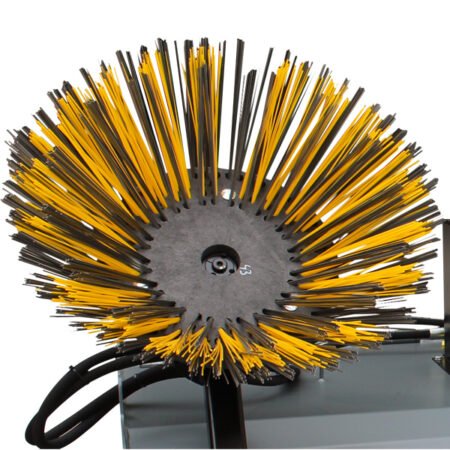

1. PPL side cleaning brush: Ø600 with independent hydraulic motor
2. Mixed steel side cleaning brush: Ø600 with independent hydraulic motor
3. Steel side cleaning brush: Ø600 with independent hydraulic motor
4. Side brush nozzle
5. Mixed steel internal brush: Main brush in PPL/Steel

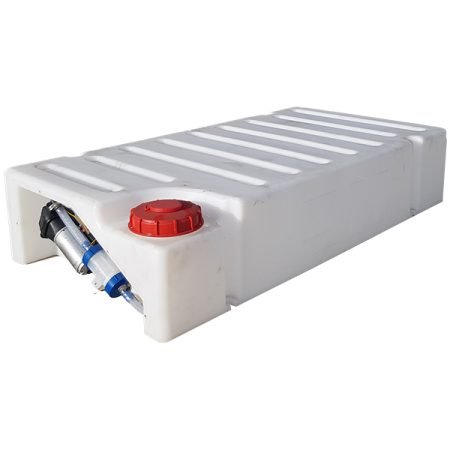

6. Watering kit with tank: Watering kit by pressure with 12 V pump and sprayers, 100 L tank
7. Watering kit with 200 lt tank: Watering kit by pressure with 12 V pump and sprayers, 200 lt tank
8. Watering kit with 300 lt tank. Watering kit by pressure with 12/24 V pump and sprayers, 1300 lt tank
9. Watering kit: By pressure for operating machines with own tank
10. Bolted under-blade
11. Hydraulic opening: Bucket opening by two hydraulic pistons
12. Connector 8–14 poles 12 V

Sweeping bucket CBS PROFI Series Models and Specifications
