Sweeping Bucket Multi Kit – CBS MK Series

Sweeping bucket for skid steer loaders equipped with a 4×1 collection bucket.

Apraksts

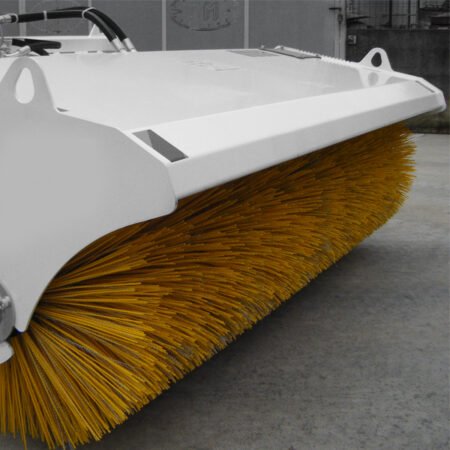

CBS MK Series Sweeping Bucket

The basis of this series is a 4×1 bucket where brushes can be attached to become a fully functional sweeping bucket with the discharge of the material collected during sweeping through the opening of the grapple. In addition, by detaching the brushes, two claws can be attached to transform it into a prehensile bucket.

4×1 Bucket
- Used for classic land loading, flattening, and/or levelling operations.
Sweeping bucket
- Attaches to the 4×1 bucket using two hooks and quick couplings of the hydraulic circuit.
- Converts the 4×1 bucket into a sweeper.
- Collected material is discharged through the grapple opening.
- Enables emptying at elevated heights when loading material into trucks or tanks.
Prehensile bucket
- Quick and easy conversion using two hooks.
- Insert claws and connect quick couplings to convert into a prehensile bucket.
- Suitable for collecting brushwood, branches, and loose material.

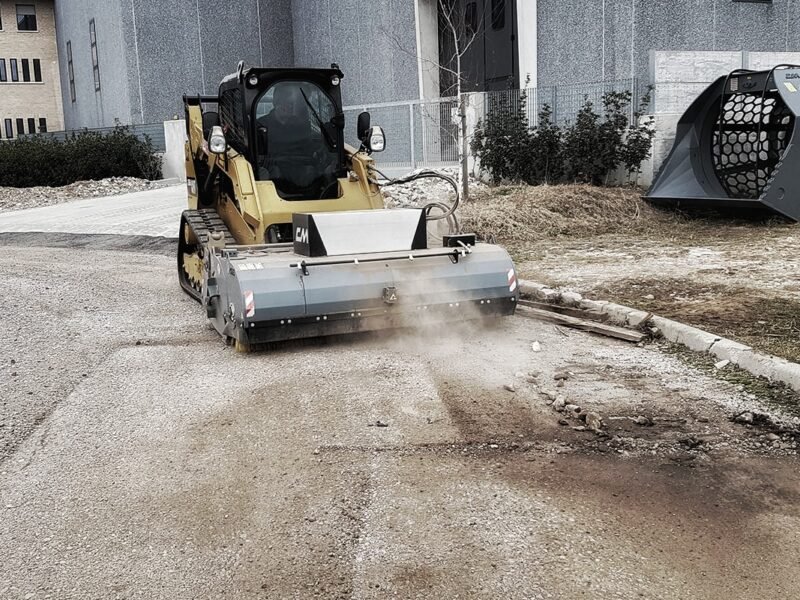

It sweeps in both directions
- CBS MK series sweeps and collects both forwards and backwards.

Applications of a CBS MK Series Sweeping Bucket

Road works
Tunnels
Construction industry
Maintenance of the landscape and agricultural areas
Underground utilities

Advantages of a CBS MK Series Sweeping Bucket

3 attachments in one
4×1 bucket
Sweeper with a collection bucket
Prehensile bucket
It sweeps and collects large pieces
It collects brushwood and branches

Optional Accessories

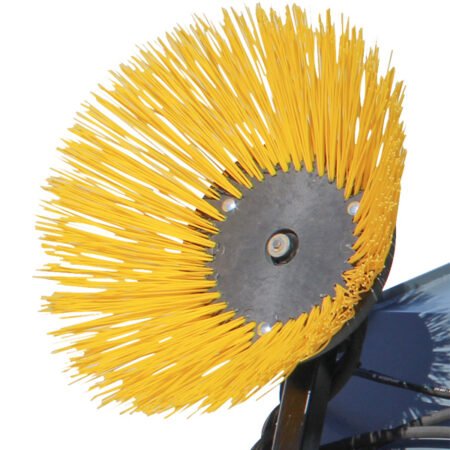

PPL side cleaning brush: Ø600 with independent hydraulic motor
Mixed steel side cleaning brush: Ø600 with independent hydraulic motor

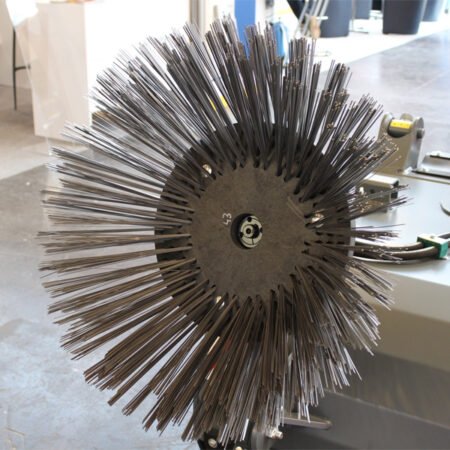

Steel side cleaning brush: Ø600 with independent hydraulic motor

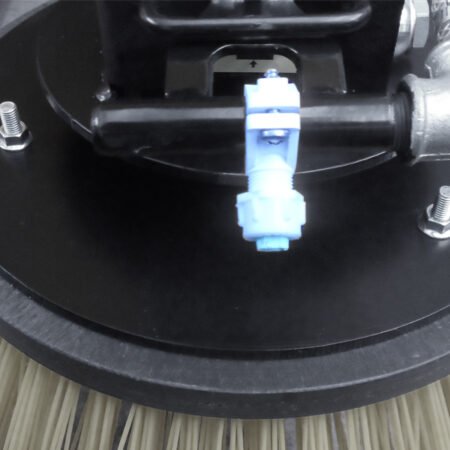

Side brush nozzle
Mixed steel internal brush: Main brush in PPL/Steel

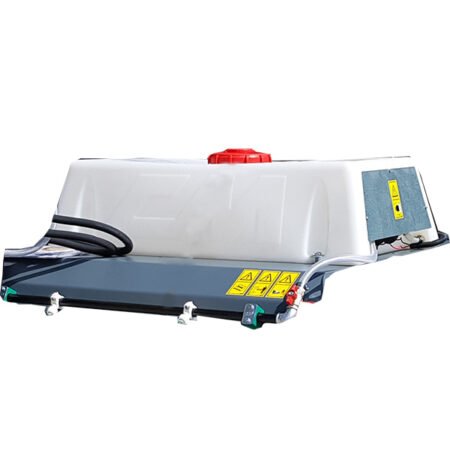

Watering kit with tank: Watering kit by pressure with 12 V pump and sprayers, 100 L tank
Watering kit: By pressure for operating machines with own tank

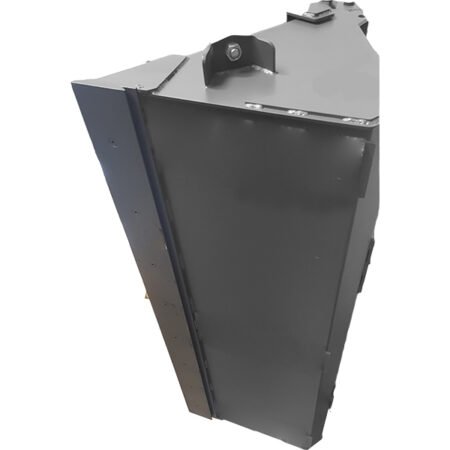

Bolted under-blade
